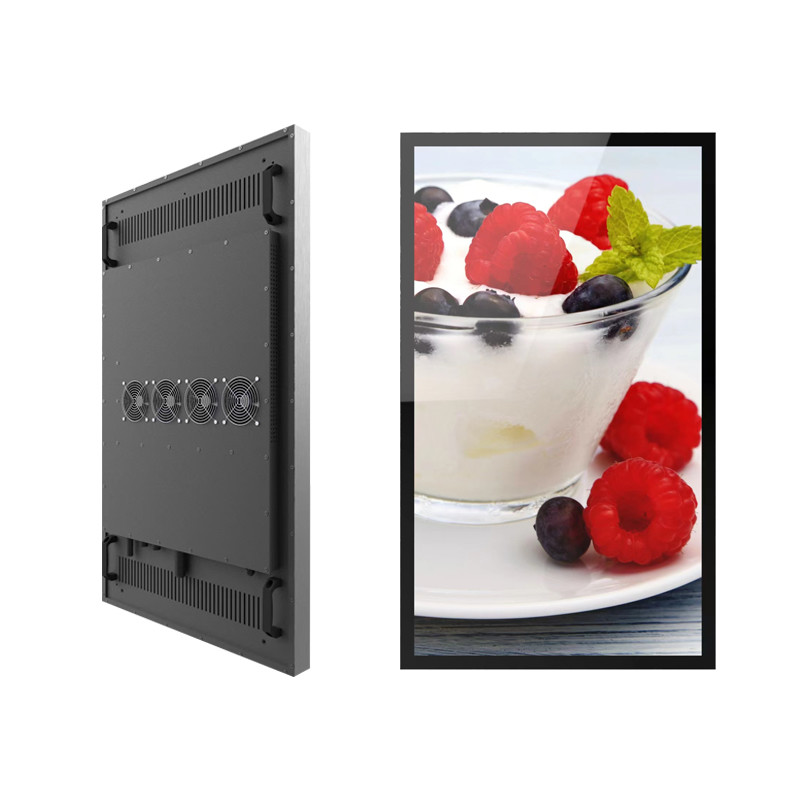

Customized Design 65" Ultra High Brightness 2500 Nits Outdoor LCD Display
Fengsh Best Sale IP66 Fanless Outdoor LCD Display
Size Range:32-55inch
OC:Industrial Grade High Tni OC
Front Protective Glass:5mm AR
IP Rate:IP66
Brightness Range:2000/2500/3000/5000
Mainboard:AD board/ Android
Mounting Method: VESA Mounting
Customized Mounting Bracket Availabl
◉ Brightness
The FSOD650 possess powerful brightness of 3000 nits, providing clear andvivid picture quality
even under direct sunlight.
◉ Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allowsthe screen to be
viewed at virtually any angle.
◉ Energy-Efficient Performance
Through advanced thermal control functionality and a filter-freedesign, the OD Series displays
operate at reduced energy con sumption. An integrated heat exchanger modifies signage resourc
-es depending on the environment, and ultimately cuts costs foroperators.
Parameter
| Diagonal Size | 65inch | 55inch |
| Resolution | 3840x2160 (16:9) | 1920x1080 (16:9) |
| Pixel Pitch(mm) | 0.630 x 0.630 | 0.630 x 0.630 |
| Active Display Area(mm) | 1428.4*803.5mm | 1209.60(H) x 680.40(V) |
| Brightness(Typ.) | 3,000 cd/m2 | 3,000 cd/m2 |
| Contrast Ratio | 1,200:1 | 1,000:1 |
| Viewing Angle(H/V) | 178/178 | 178/178 |
| Display Colors | 8 bit - 16.7M | 8 bit - 16.7M |
| Color Gamut | 72% | 72% |
| Operation Hour | 7*24 | 7*24 |
| Haze | 2% | 2% |
| Dynamic C/R | 100,000:1 | 100,000:1 |
| Speaker Type | N/A | N/A |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), | AC 100 - 240 V~ (+/- 10 %), |
| 50/60 Hz | 50/60 Hz |
| Weight (kg) | 60.0kg | 49.0kg |
| 80.0kg | 78.0kg |
| Protection Glass | 5mm | 5mm |
| Bezel Width (mm) | Even 33.8mm | Even 33.8 mm |
| Operating Temperature | -30℃~ 50℃ | -30℃~ 50℃ |
| Humidity | 10~100% (Non-condensing) | 10~100% (Non-condensing) |
| IP Certificate | IP56 | IP56 |
| Processor Coretex | Rockchip RK3288 Coretex A17 1.8GHz | Rockchip RK3288 Coretex A17 1.8GHz |
| Memory Interface | HYNIX DDR3 2GB | HYNIX DDR3 2GB |
| Storage | 8GB | 8GB |
| Operating System | Android 7.1 | Android 7.1 |
Multimedia
Video Decoder | MPEG-1/2/4, H.264, WMV,WKV,TS,FLV | MPEG-1/2/4, H.264, WMV,WKV,TS,FLV |
| JPEG, PNG, BMP, PNG,GIF | JPEG, PNG, BMP, PNG,GIF |
| MP3 | MP3 |
Application
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from the date of
delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA, DVI,
USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+
temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will pass
through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
Product Tags:
|
|
